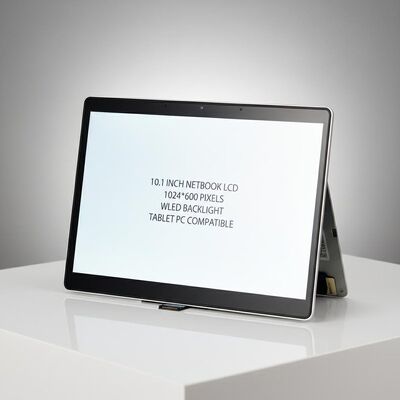

10.1 inch LCD Display with 1024*600 Resolution WLED Backlight and 40PIN IPS for Tablet PC

Nama merek:	TIANMA
Nomor Model:	TM101DDHG01
MOQ:	10 buah
harga:	negotiable
Ketentuan Pembayaran:	T/T,W,Western Union,MoneyGram
Kemampuan Pasokan:	3000 pcs per minggu

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Rohs,CE,FCC

Kualitas:

Baru Asli

kemasan:

Kemasan industri asli

Resolusi:

1024*600

Gaya:

IPS 40PIN

Kecerahan:

200 cd/m2

Warna:

16,7 juta

Rasio Kontras:

500 :1

kehidupan kerja:

15k jam tanpa sopir

Kemasan rincian:

Kemasan Industri

Deskripsi Produk

10.1 inch Netbook LCD Display N101LGE-L11

10.1 inch Netbook LCD Display N101LGE-L11 with 1024×600 pixels resolution and WLED backlight for tablet PC applications.

The N101LGE-L11 (Product Code: CMO1032) is a 10.1 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation, featuring an integral WLED backlight system with LED driver and no touch screen. This model features WLED backlight, LED driver, reverse interface, and matte surface treatment.

Manufacturer Information

Manufacturer	Chimei Innolux
Model Name	N101LGE-L11

Display Specifications

Display Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA, 16:9
Dot Layout	RGB Vertical Stripe
Display Area	222.72(W)×125.28(H) mm
Panel Weight	180/190g (Typ./Max.)
Outline Size	235(W)×143(H)×5.2(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	45/45/20/45 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
View Direction	6 o'clock
Response Time	3/7 (Typ.)(Tr/Td) ms
Display Colors	262K, 45% NTSC
Touch Screen	Without
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Light Source	WLED, 15K hrs, With LED Driver
Frequency	60Hz
Application	Tablet PC
Interface	LVDS (1 ch, 6-bit), 40 pins Connector
Input Voltage	3.3V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Important Note: This model entered mass production in Q4 2010 with last shipment in Q2 2013 and is now discontinued. einklcd strongly recommends contacting Chimei Innolux or their agent for the latest production and specification details before considering this model for future products. The production status information provided is for reference only and should not be used as the basis for decision making.
