rincian produk

Rumah Produk

BOE 11Inch LCD Display Panel NV110C9M-L60 with 400cd/m2 Brightness 1200x2000 Pixels and 51pin Connector

Nama merek:	BOE
Nomor Model:	NE160QDM-NY1
MOQ:	10 buah
harga:	negotiable
Ketentuan Pembayaran:	T/T,W,Western Union,MoneyGram
Kemampuan Pasokan:	3000 pcs per minggu

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Rohs,CE,FCC

Kualitas:

Baru Asli

kemasan:

Kemasan industri asli

Bahan:

Kaca

Kecerahan:

400ccd/m2

Resolusi:

2560*1600 piksel

Rasio Kontras:

1400:1

Warna:

16,7 juta

kehidupan kerja:

15k jam

Konektor:

51P

Panel sentuh:

tanpa

Kemasan rincian:

Kemasan Industri

Deskripsi Produk

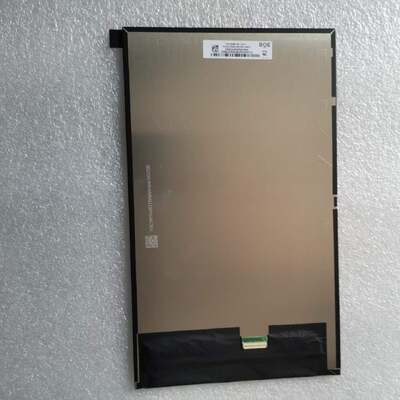

BOE 11-Inch Tablet LCD Display Panel NV110C9M-L60

High-performance 11.0-inch diagonal a-Si TFT-LCD display panel with 1200×2000 resolution, 400 cd/m² brightness, and 51-pin MIPI interface. Designed for tablet and pad applications with excellent viewing characteristics and reliable operation.

Key Specifications

Brand	BOE	Model	NV110C9M-L60
Diagonal Size	11.0 inch	Type	a-Si TFT-LCD, LCM
Pixel Number	1200(RGB)×2000, 3:5	Dot Layout	RGB Vertical Stripe
Active Area	143.1(H)×238.5(V) mm	Physical Size	148.4(H)×247.1(V)×3.7(D) mm
Mass	130g (Max.)	Surface Coating	Hard coating
Luminance	400 cd/m² (Typ.)	Contrast Ratio	1400:1 (Typ.) (TM)
View Direction	Symmetry	Response Time	20 (Max.)(Tr+Td) mm
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M, 72% NTSC	Designed For
Power Usage	-	Light Source	9S4P WLED, 15K hrs, Without Driver
Frame Rate	60Hz	Touch Panel	Without

Interface & Power Specifications

Interface Type	MIPI (4 data lanes), 51 pins Connector
Power Supply	1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE)

Environmental Specifications

Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Product Features

Integral WLED backlight system (15,000 hours lifespan)
High brightness 400 cd/m² typical luminance
Wide viewing angles with symmetrical viewing characteristics
High color gamut supporting 16.7 million colors, 72% NTSC
Fast response time for smooth video performance
MIPI interface with 4 data lanes for high-speed data transfer

Production Status Note: This model entered mass production in Q2 2022 and is currently in production. Specifications were last updated on September 15, 2025. For the latest production status and detailed specifications, please contact BOE or their authorized distributors directly.
