Mitsubishi 6.5inch Industrial LCD Display TFT-LCD Panel with 1300cd/m2 Brightness and 640X480 Pixels Resolution

Name: Mitsubishi 6.5inch Industrial LCD Display TFT-LCD Panel with 1300cd/m2 Brightness and 640X480 Pixels Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AA065VD11
Price: 43.00 USD
Availability: InStock

Nama merek:	Mitsubishi
Nomor Model:	AA065VD11
MOQ:	10 buah
harga:	negotiable
Ketentuan Pembayaran:	T/T,W,Western Union,MoneyGram
Kemampuan Pasokan:	3000 pcs per minggu

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Rohs,CE,FCC

Kualitas:

Baru Asli

kemasan:

Kemasan industri asli

Resolusi:

640*480 piksel

Gaya:

IPS 31pin

Kecerahan:

1300 cd/m2

Warna:

16,7 juta

Rasio Kontras:

600: 1

kehidupan kerja:

50K jam

Jenis:

Lcm

Ukuran:

6,5 inci

Jenis Lampu:

WLED

voltase:

3.3V

Kemasan rincian:

Kemasan Industri

Deskripsi Produk

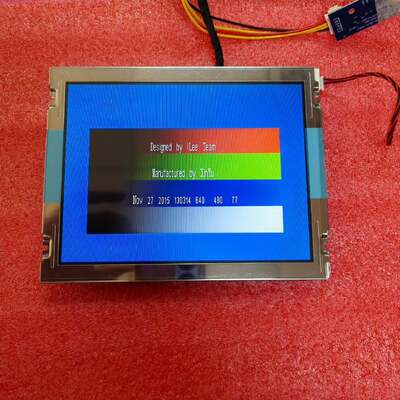

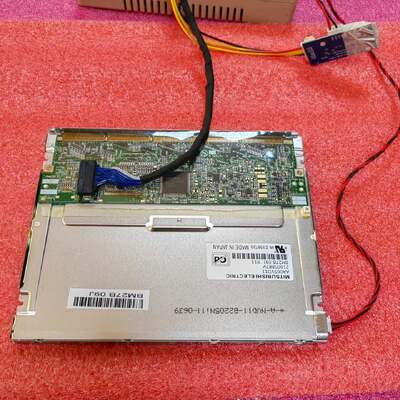

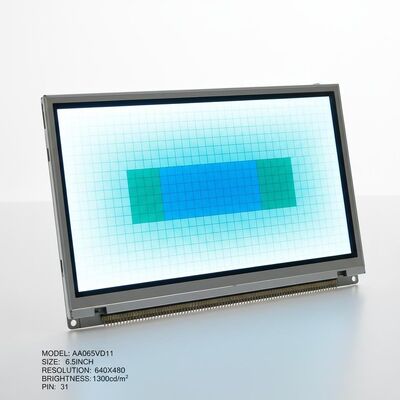

Mitsubishi 6.5inch Industrial LCD Display AA065VD11 TFT-LCD Panel

The AA065VD11 (Alias: T-55465D065J-LW-A-ACN) is a 6.5 inch diagonal a-Si TFT-LCD display panel from Mitsubishi Electric Corporation featuring an integral WLED backlight system. This industrial-grade panel operates in temperatures from -30°C to 80°C and withstands vibration levels up to 1.0G (9.8 m/s²).

Note: This model is discontinued. Mass production began Q1 2012 with last shipment Q2 2022.

Key Specifications

Brand Mitsubishi

Model AA065VD11

Diagonal Size 6.5 inch

Type a-Si TFT-LCD, LCM

Resolution 640 × 480 pixels (VGA)

Brightness 1300 cd/m²

Contrast Ratio 600:1

View Direction 6 o'clock

Response Time 6/19 ms (Tr/Td)

Viewing Angle 80/80/80/60 (CR≥10)

Operating Mode TN, Normally White

Color Support 262K, 40% NTSC

Power Consumption 3.8W

Light Source 2 strings WLED, 100K hrs

Interface CMOS (1 ch, 6-bit), 31 pins

Power Supply 3.3V

Touch Panel Without

Operating Temperature -30°C to 80°C

Storage Temperature -30°C to 80°C

Physical Dimensions 154 × 121 × 11.5 mm

Active Area 132.48 × 99.36 mm

Weight 185g

Surface Coating Antiglare, Hard coating (3H)

Important: This model is recommended for industrial and outdoor high-brightness applications. For integration into future products, contact Mitsubishi or their agent for the latest production and specification details. Information on einklcd.com is for reference only.
