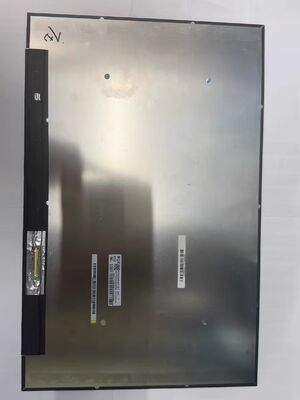

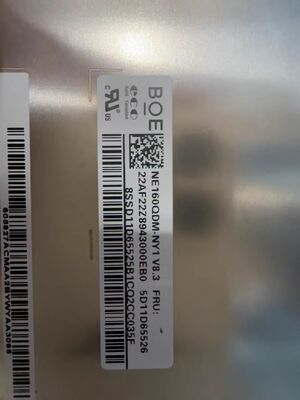

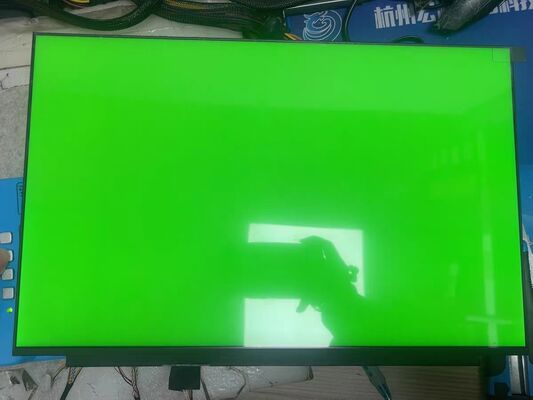

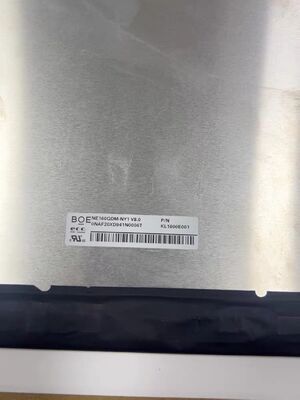

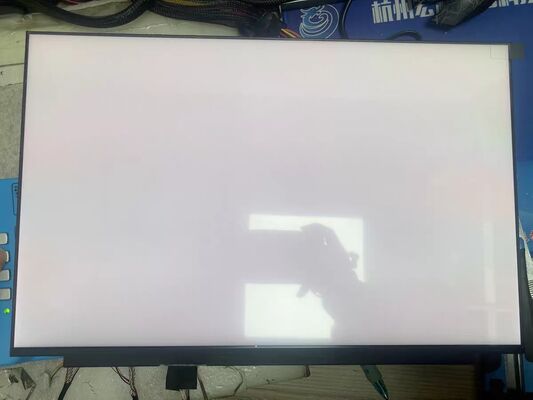

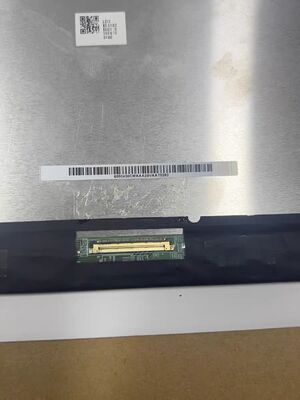

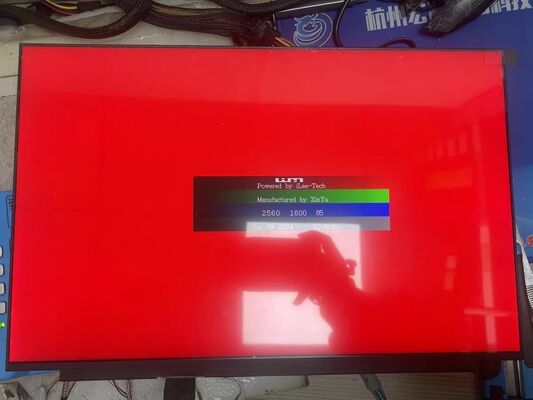

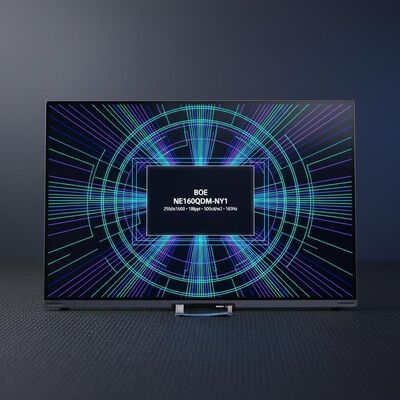

BOE 16Inch LCD Display Panel NE160QDM-NY1 with 2560x1600 Pixels 500cd/m2 Brightness and 165Hz Frame Rate

Name: BOE 16Inch LCD Display Panel NE160QDM-NY1 with 2560x1600 Pixels 500cd/m2 Brightness and 165Hz Frame Rate
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE160QDM-NY1
Price: 30.00 USD
Availability: InStock

Nama merek:	BOE
Nomor Model:	NE160QDM-NY1
MOQ:	10 buah
harga:	negotiable
Ketentuan Pembayaran:	T/T,W,Western Union,MoneyGram
Kemampuan Pasokan:	3000 pcs per minggu

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Rohs,CE,FCC

Kualitas:

Baru Asli

kemasan:

Kemasan industri asli

Bahan:

Kaca

Kecerahan:

500ccd/m2

Resolusi:

2560*1600 piksel

Rasio Kontras:

1200:1

Warna:

1.07B

kehidupan kerja:

15k jam

Konektor:

40p

Panel sentuh:

tanpa

Kemasan rincian:

Kemasan Industri

Deskripsi Produk

BOE 16-Inch PC LCD Module TFT-LCD Display Panel NE160QDM-NY1

High-performance 16.0-inch TFT-LCD display panel with 2560×1600 WQXGA resolution, 500 cd/m² brightness, and 165Hz refresh rate. Designed for laptops and gaming applications with advanced Oxide TFT technology.

Product Overview

BOE Technology Group Co., Ltd. NE160QDM-NY1 is a 16.0-inch diagonal Oxide TFT-LCD display panel featuring an integral WLED backlight system with LED driver. This panel operates within a temperature range of 0~50°C and offers exceptional performance characteristics including sRGB color gamut, 165Hz refresh rate, and AMD FreeSync compatibility.

Key Features

16.0-inch Oxide TFT-LCD display
2560×1600 WQXGA resolution (188 PPI)
500 cd/m² typical brightness
165Hz refresh rate
100% sRGB color gamut
AMD FreeSync technology
WLED backlight with LED driver
eDP 1.4a interface
Anti-glare hard coating (3H)
10-bit color depth

Technical Specifications

Brand	BOE
Model P/N	NE160QDM-NY1
Diagonal Size	16.0"
Panel Type	Oxide TFT-LCD, LCM
Resolution	2560(RGB)×1600, WQXGA, 188 PPI
Active Area	344.678(W)×215.424(H) mm
Outline Dimensions	349.68(W)×224.42(H)×4.6(D) mm
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.)
Response Time	25ms (Typ.) Tr+Td, 3ms G to G (OD)
Viewing Angle	89/89/89/89 (Typ.) CR≥10
Frame Rate	165Hz
Interface Type	eDP (4 Lanes), eDP1.4a, HBR3 (8.1G/lane), 40 pins Connector
Power Supply	3.3V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Touch Panel	Without

Applications

Recommended for laptops, gaming displays, and other high-performance computing applications requiring superior visual quality and fast refresh rates.

Important Note: Production status information is for reference only and should not be used as the basis for decision making. Contact BOE or its distributor for the latest production and specification details.
