Innolux 15.6Inch LCD Panel with 1920x1080 Pixels Resolution 450cd/m² Brightness and 40pin Interface Industrial LCD Display

Nama merek:	innolux
Nomor Model:	AT056TN52
MOQ:	10 buah
harga:	negotiable
Ketentuan Pembayaran:	T/T,W,Western Union,MoneyGram
Kemampuan Pasokan:	3000 pcs per minggu

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Rohs,CE,FCC

Kualitas:

Baru Asli

Kemasan:

Kemasan industri asli

Resolusi:

1920*1080 Piksel

Gaya:

WLED 40P

Kecerahan:

450CCD M2

Warna:

16,7 juta

Rasio Kontras:

1000 :1

kehidupan kerja:

50K jam

Kemasan rincian:

Kemasan Industri

Menyoroti:

1920x1080 Pixels Resolution LCD Panel

450cd/m² Brightness Industrial LCD Display

40pin Interface TFT-LCD Display

Deskripsi Produk

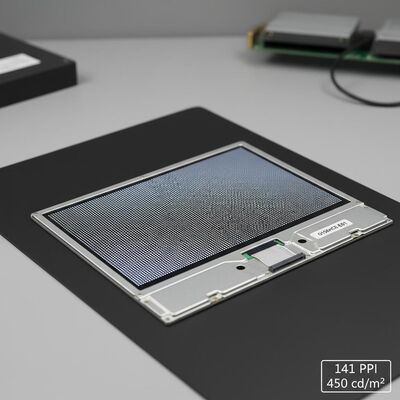

Innolux 15.6-Inch LCD Panel G156HCE-E01

15.6-inch industrial LCD module featuring 1920*1080 Full HD resolution, 450 cd/m² brightness, and 40-pin eDP interface. Designed for industrial applications and gaming systems with wide operating temperature range and robust construction.

Key Features

15.6-inch diagonal a-Si TFT-LCD display
Full HD 1920*1080 resolution (141 PPI)
High brightness: 450 cd/m² (typical)
1000:1 contrast ratio
WLED backlight with 50,000-hour lifespan
eDP 1.2 interface with 40-pin connector
Wide viewing angle: 89/89/89/89
Industrial temperature range: 0°C to 60°C
Anti-glare, hard coating (3H) surface treatment

Technical Specifications

Brand	Innolux
Model Number	G156HCE-E01
Panel Type	a-Si TFT-LCD, LCM
Active Area	344.16 * 193.59 mm
Outline Dimensions	351.84 * 208.88 * 6.5 mm (HVD)
Pixel Format	RGB Vertical Stripe
Color Depth	16.7M colors (72% NTSC)
Response Time	14/11 ms (Typ.)
Refresh Rate	60Hz
Operating Voltage	3.3V (Typ.)
Weight	550g (Typ.)
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Vibration Resistance	1.5G (14.7 m/s²)

This model entered mass production in Q2 2020 and is currently in production. For the latest production status and detailed specifications, we recommend contacting Innolux or their authorized agents directly. Product information is subject to change without notice.
