rincian produk

Rumah Produk

BSDT 20.1Inch Industrial LCD Panel TDA201-001V03 with 1600x1200 Pixels and 900cd/m² Brightness

Name: BSDT 20.1Inch Industrial LCD Panel TDA201-001V03 with 1600x1200 Pixels and 900cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TDA201-001V03
Price: 43.00 USD
Availability: InStock

Nama merek:	innolux
Nomor Model:	TDA201-001V03
MOQ:	10 buah
harga:	negotiable
Ketentuan Pembayaran:	T/T,W,Western Union,MoneyGram
Kemampuan Pasokan:	3000 pcs per minggu

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Rohs,CE,FCC

Kualitas:

Baru Asli

Kemasan:

Kemasan industri asli

Resolusi:

1600*1200 piksel

Gaya:

WLED 60P

Kecerahan:

900 CCD M2

Warna:

16,7 juta

Rasio Kontras:

800 :1

kehidupan kerja:

30K Jam

Kemasan rincian:

Kemasan Industri

Menyoroti:

20.1Inch Industrial LCD Panel

1600x1200 Pixels TFT-LCD Display

900cd/m² Brightness LCM

Deskripsi Produk

BSDT 20.1-Inch Industrial LCD Panel TDA201-001V03

High-performance 20.1-inch industrial LCD panel featuring 1600*1200 resolution, 900 cd/m² brightness, and wide temperature operation for demanding outdoor and industrial applications.

Key Features

20.1-inch diagonal display with 1600*1200 UXGA resolution
High brightness 900 cd/m² for outdoor visibility
Wide operating temperature: -30°C to 70°C
800:1 contrast ratio with 85/85/85/85 viewing angles
LVDS interface with 30-pin connector
WLED backlight with 30,000-hour lifespan
Industrial-grade construction for harsh environments

Technical Specifications

Brand	BSDT
Model Number	TDA201-001V03
Panel Type	a-Si TFT-LCD, LCM
Diagonal Size	20.1 inches
Resolution	1600(RGB)*1200 (UXGA), 99 PPI
Active Area	408*306 mm
Brightness	900 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	25 ms (Max., Tr+Td)
Interface	LVDS (2 ch, 8-bit), 30-pin Connector
Power Supply	12.0V (Typical)
Operating Temperature	-30°C to 70°C
Storage Temperature	-55°C to 85°C
Weight	2.75 kg (Maximum)
Outline Dimensions	432331.520 mm

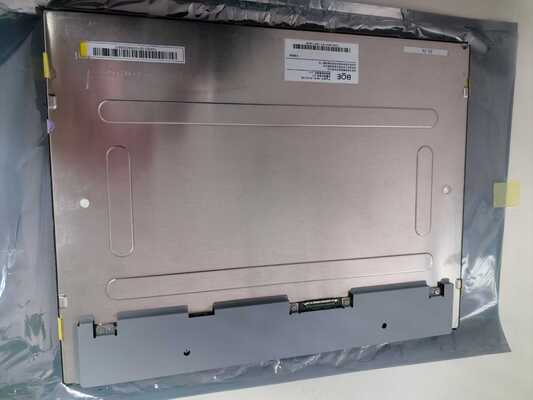

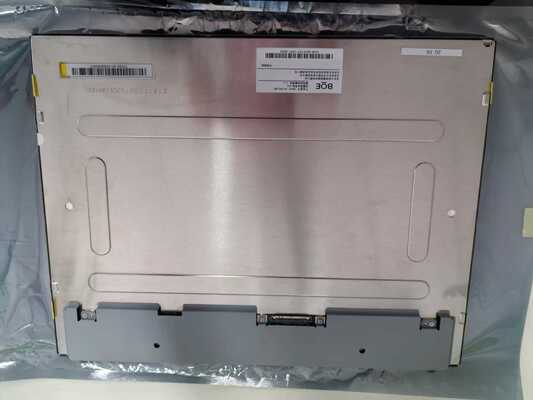

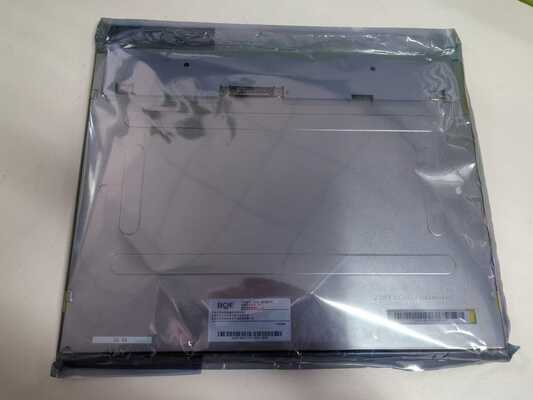

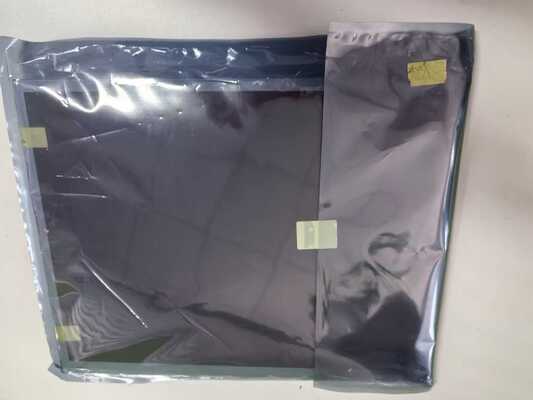

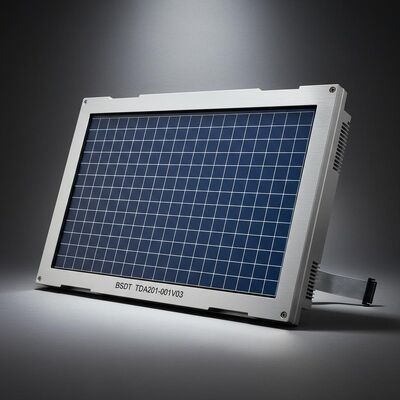

Product Image

Application Areas

Ideal for industrial control systems, outdoor digital signage, harsh environment displays, and applications requiring high brightness and wide temperature operation.

Note: Production status and specifications are subject to change. For the latest information and to integrate this LCD module into your product, please contact BSDT or their authorized representatives directly.
