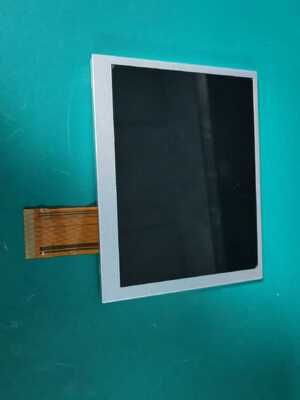

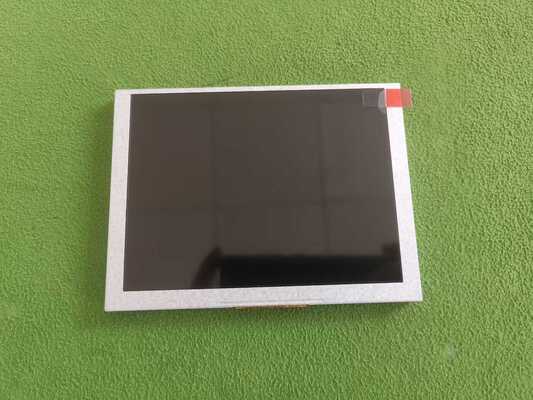

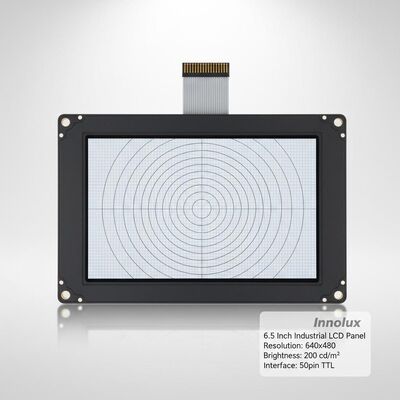

Innolux 6.5Inch Industrial LCD Panel with 640x480 Resolution 200 cd/m² Brightness and 50pin Interface for Video Door Phone and Digital Photo Frame

Innolux 6.5Inch Industrial LCD Panel with 640x480 Resolution 200 cd/m² Brightness and 50pin Interface for Video Door Phone and Digital Photo Frame

Nama merek:	innolux
Nomor Model:	AT056TN52
MOQ:	10 buah
harga:	negotiable
Ketentuan Pembayaran:	T/T,W,Western Union,MoneyGram
Kemampuan Pasokan:	3000 pcs per minggu

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Rohs,CE,FCC

Kualitas:

Baru Asli

Kemasan:

Kemasan industri asli

Resolusi:

640*480 piksel

Gaya:

WLED 60P

Kecerahan:

200CCD M2

Warna:

Rasio Kontras:

500 :1

kehidupan kerja:

20k jam

Kemasan rincian:

Kemasan Industri

Menyoroti:

640x480 Resolution Industrial LCD Panel

200 cd/m² Brightness TFT-LCD Display

50pin Interface LCM

Deskripsi Produk

Innolux 6.5-Inch Industrial LCD Panel

High-quality 640*480 resolution TFT-LCD display with 200 cd/m² brightness, designed for industrial applications including video door phones and digital photo frames.

Product Overview

The Chimei Innolux AT056TN52 V.3 is a 5.6-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This industrial-grade panel features wide operating temperature ranges and is suitable for various embedded applications.

Technical Specifications

Brand	Chimei Innolux
Model Number	AT056TN52 V.3
Diagonal Size	5.6 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)*480 (VGA), 143 PPI
Active Area	112.896 * 84.672 mm
Brightness	200 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Viewing Angle	70/70/50/70 (CR≥10)
Response Time	10/15 ms (Tr/Td)
Display Colors	16.7 million
Backlight	3S5P WLED, 20,000 hours
Signal Interface	Parallel RGB (1 ch, 8-bit), 50-pin FPC
Input Voltage	3.3/5.0/15/-10V (VCC/AVDD/VGH/VGL)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Panel Weight	127.5g (Typical)

Application Examples

Additional Information

This model entered mass production in Q2 2009 with last shipment in Q4 2022 and is now discontinued. For current production status and latest specifications, please contact Chimei Innolux or their authorized distributors.

Product status information is provided for reference only and should not be used as the sole basis for decision-making. Always verify current production status with the manufacturer.
