Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display

Nama merek:	Sharp
Nomor Model:	LQ079L1SX01
MOQ:	10 pcs
harga:	negotiable
Rincian kemasan:	Kemasan Industri
Ketentuan Pembayaran:	T/T, W, Western Union, MoneyGram

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Rohs,CE,FCC

Kualitas:

Asli baru

Kemasan:

Kemasan Industri Asli

Resolusi:

1536*2048 piksel

Gaya:

IPS 50pin

Kecerahan:

460cd/m2

Warna:

16.7m

Rasio kontras:

1000 :1

Kehidupan kerja:

15k jam

Jenis:

Ukuran:

7,9 inci

Jenis lampu:

Voltase:

Menyediakan kemampuan:

3000 pcs per minggu

Deskripsi Produk

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display

The LQ079L1SX01 is a 7.9 inch diagonal Oxide TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -30 ~ 70°C . It's general features are summarized by EINKLCD in the following: Portrait type, WLED Backlight , for iPad mini 2. Based on its features, Einklcd recommend that this model be applied to Pad & Tablet, 3D Printer etc.Built-in NT35523 + NT35523 driver IC. According to the information stored in einklcd this model mass production on Q3, 2014, Now this model is discontinued. We inputted this model's specification on Mar 31 2015 for the first time, and the latest update on Sep 20 2023. If you want to embed LQ079L1SX01 LCM in your future product, Einklcd strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail. The LQ079L1SX01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:Sharp

Model P/N: LQ079L1SX01

Diagonal Size: 7.9"

Panel Type: Oxide TFT-LCD, LCM

Resolution: 1536(RGB)×2048, QXGA 325PPI Pixel

Format: RGB Vertical Stripe

Active Area: 119.808(W)×159.744(H) mm

Bezel Opening-

Outline Size:125.55(W)×171.3(H)×3.15(D) mm Treatment -

Luminance:460 cd/m² (Typ.)

Contrast Ratio:1000 : 1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Response 35 (Typ.)(Tr+Td) ms

Good View at Symmetry Work Mode IPS, Normally Black, Transmissive

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Color Depth 16.7M 70% NTSC Backlight 6S4P WLED , No Driver

Mass 65.0g (Typ.) Used for Pad & Tablet 3D Printer

Refresh Rate :60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touchscreen:Without

Signal Type MIPI (2 ch, 4 data lanes) , 50 pins Connector

Voltage Supply 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN)

Max. Ratings Storage Temp.: -30 ~ 70 °C

Operating Temp.: -20 ~ 60 °C

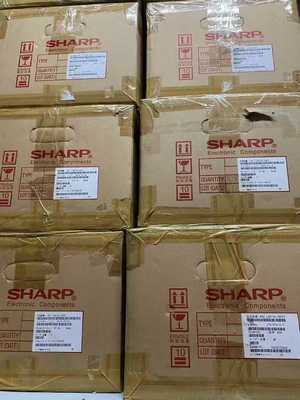

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display 0

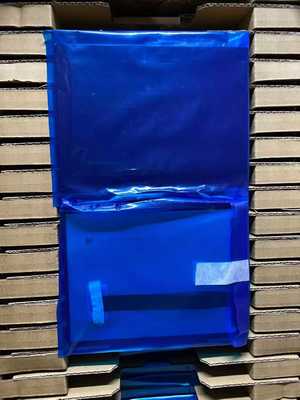

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display 1
